Home>>Products>>Ultrasonic Water Meter

Ultrasonic Water Meter With Replaceable Battery

Product Type :
Ultrasonic Water Meter
Nominal Diamter :
DN15,20
Range Ratio :
R160 R200 R250 R400
Protection Level :
IP68
Maximum Pressure :
1.6MPa
Maximum Temperature :
T30
Substrate :
Nylon
OEM :
Yes
Share:
Production Introduction

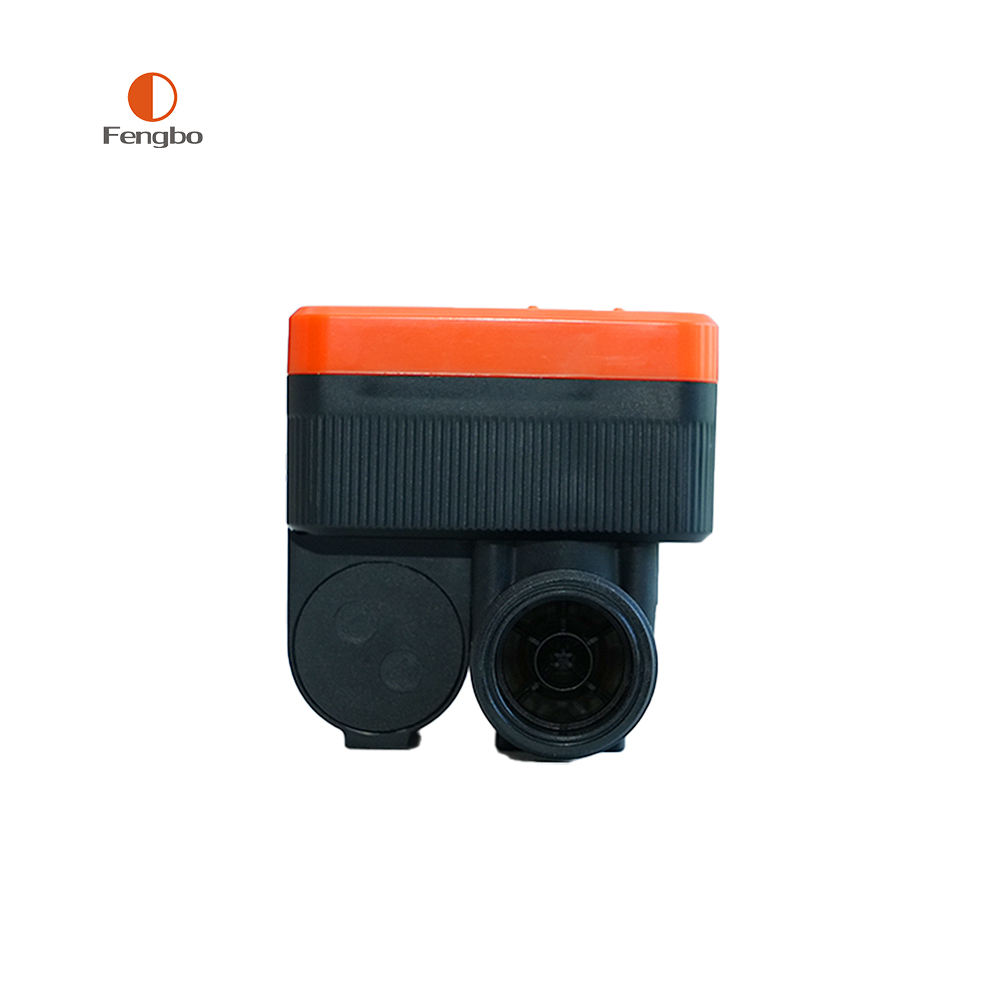

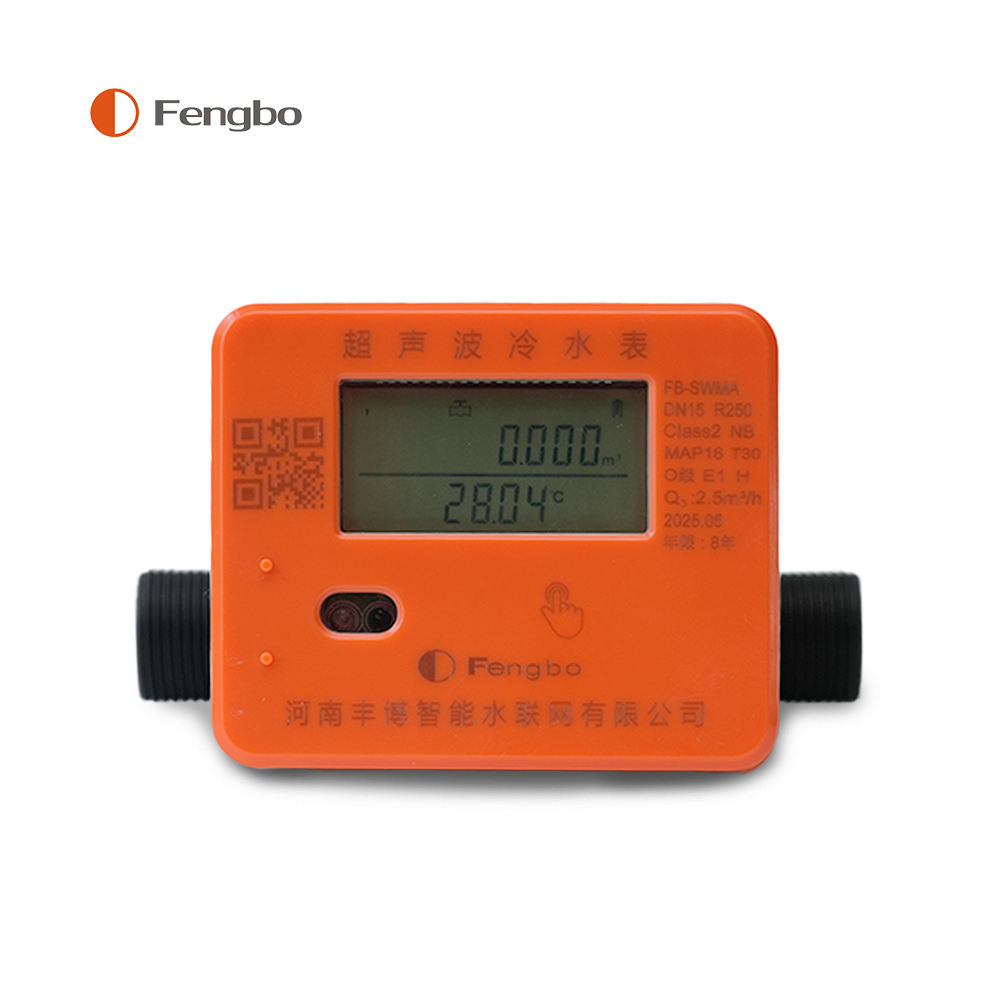

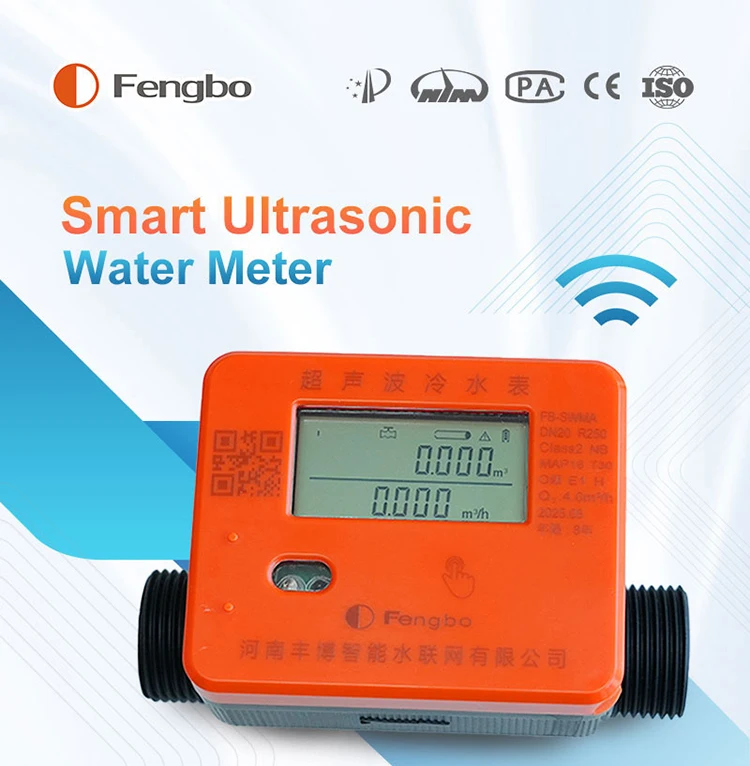

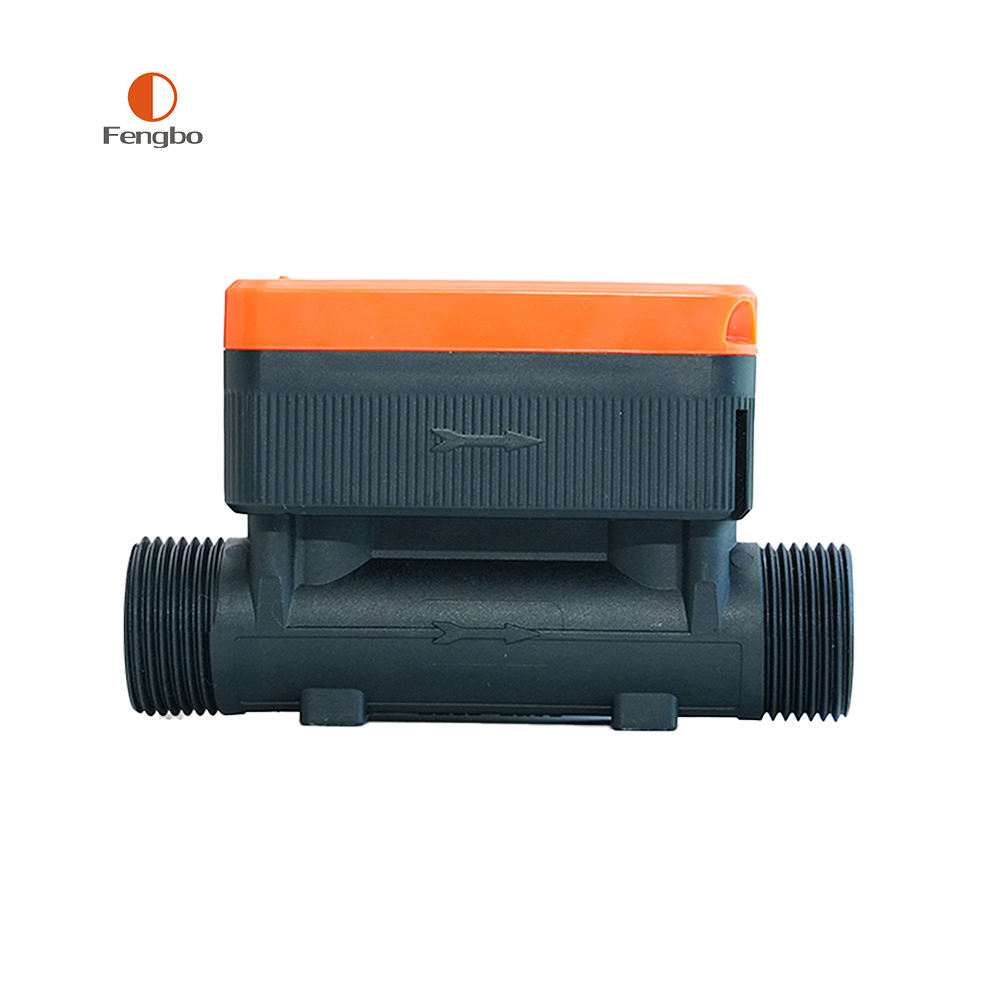

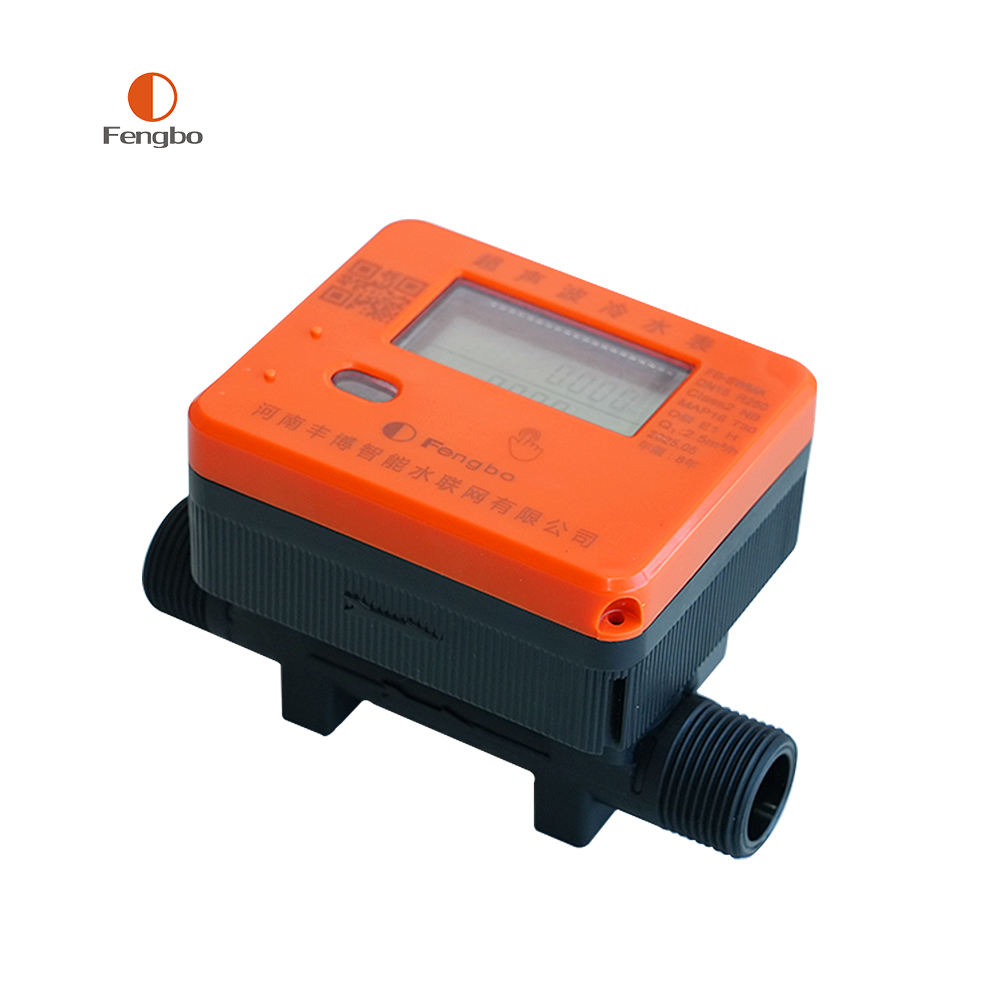

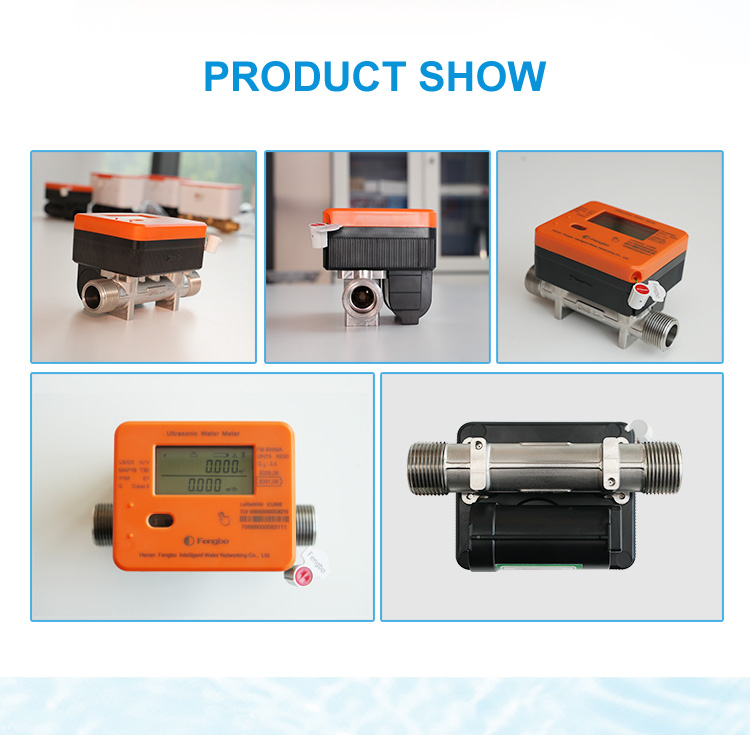

 Fengbo DN15/DN20 Fourth Generation Ultrasonic Water Meter With Replaceable Battery

1. This water meter adopts a stacked structure design, which is precisely adapted to the narrow and complex pipeline environment. The full process of automated production ensures high quality and fast delivery.

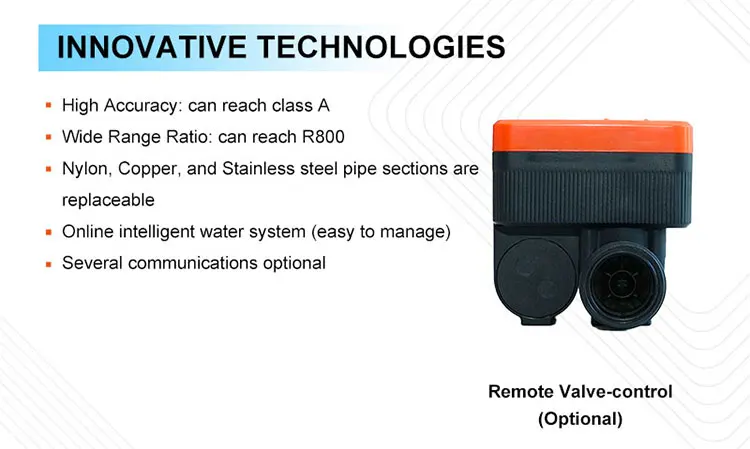

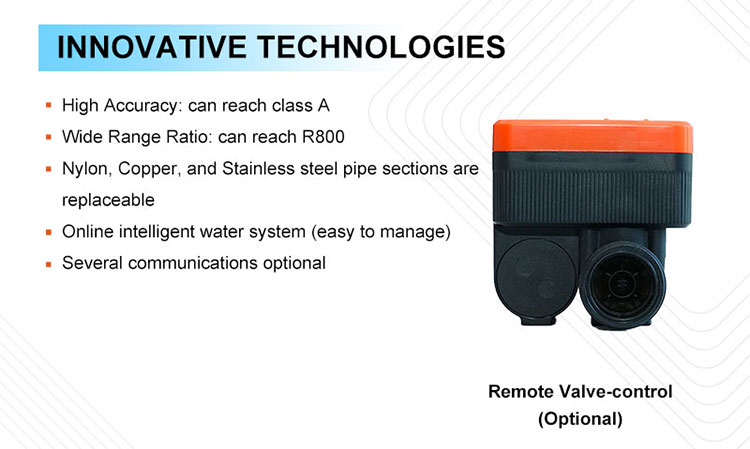

2. This water meter has two optional modes: valve control and non-valve control; at the same time, the lithium battery can be replaced to extend the life, without the need for professional tools and technicians. The service life of the entire meter is more than 10 years.

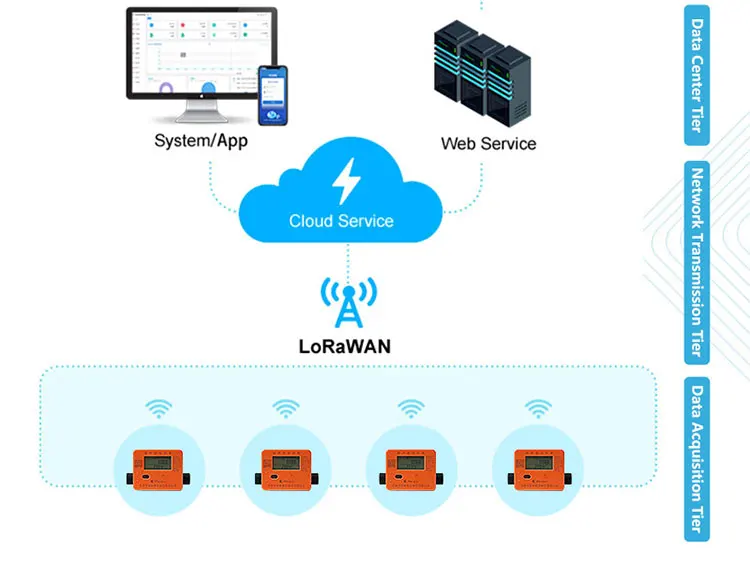

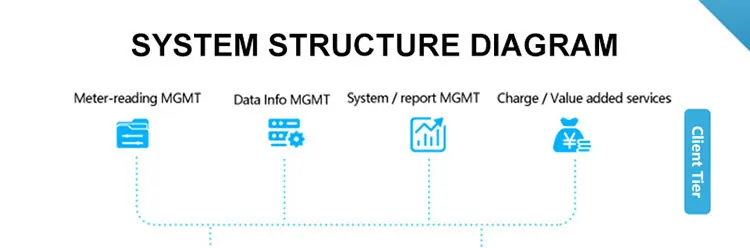

3. Communication technology NB-IoT, 4G-Cat.1, LoRaWAN are available in a variety of ways to realize water meter prepayment, remote meter reading, abnormal water use warning,ect.

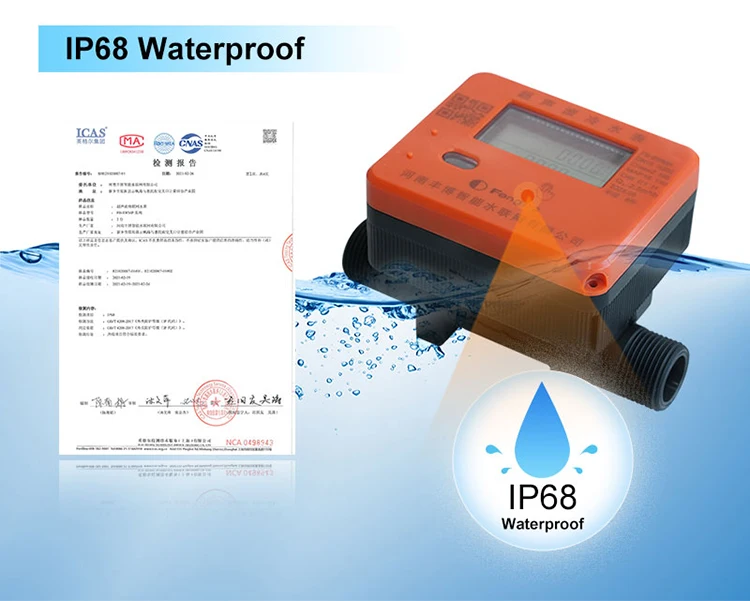

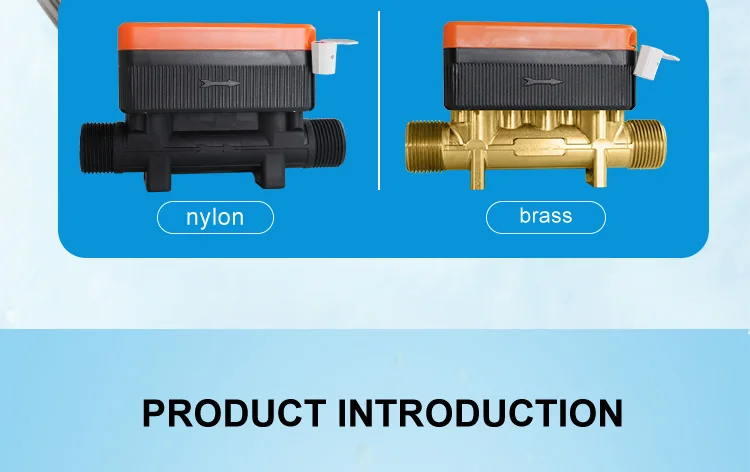

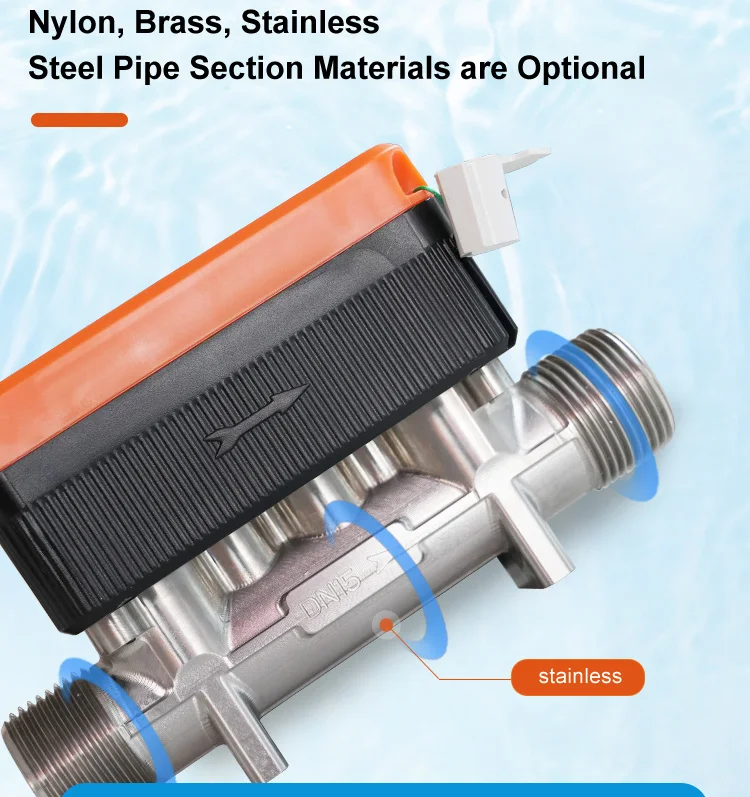

4. The pipe material can be selected from nylon, brass or stainless steel, and IP68 protection is not afraid of humid environments.

5.  With self-diagnosis function, flow sensor fault alarm, measurement over range alarm, and battery low voltage alarm.

6. The water meter logo and brand are customizable. Fengbo ultrasonic water meter has become the choice of dealers and agents in more than 40 countries.

If you are interested in our new ultrasonic water meter, please contact us for a quote Whatsapp: +86 19337882352

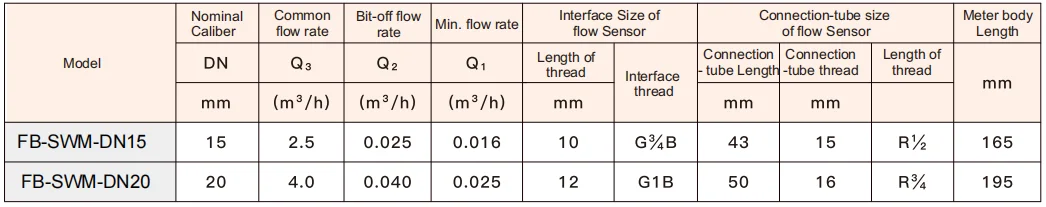

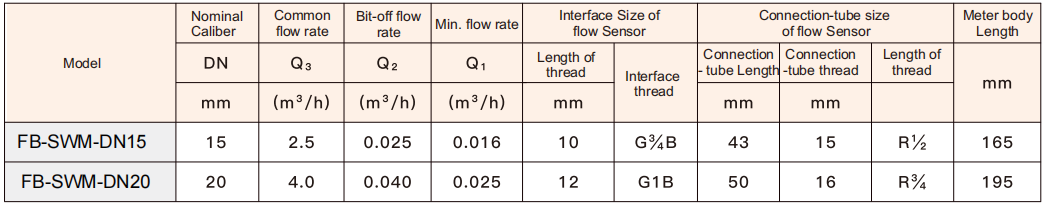

Parameter of Ultrasonic Water Meter With Replaceable Battery

Meter Type:

LoRaWAN Ultrasonic Water Meter

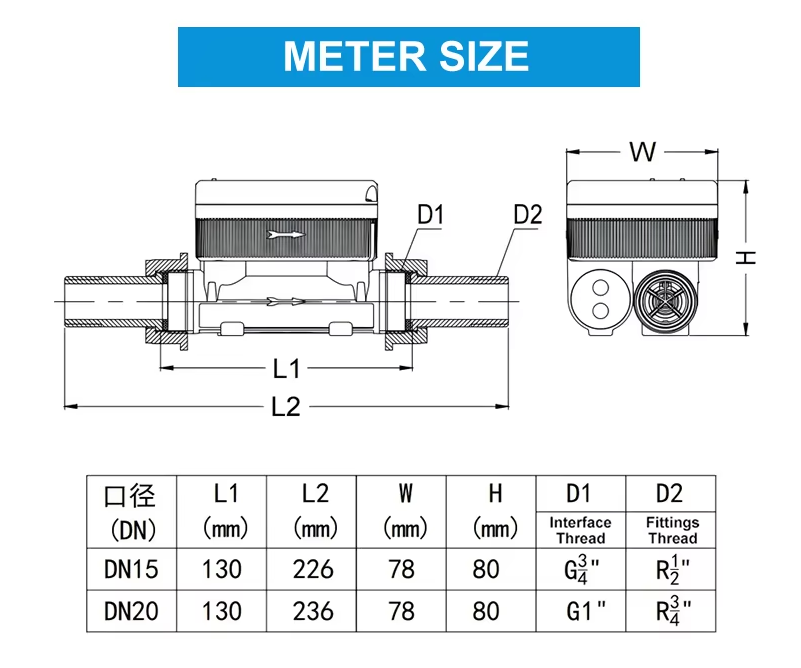

Caliber:

DN15 DN20

Shell material:

Polymer material (food grade)

Pipe material:

Nylon/Stainless steel/Brass

Is there a valve:

Without valve/With valve

Communication:

LoRaWAN

Power supply:

Battery powered

Upload frequency:

Default is once every 24 hours (can be set, need to note)

Service life:

6years Replaceable battery

Installation requirements:

U5/D3

Connect:

Thread

Installation method:

Horizontal/vertical

Antenna:

Built-in/external (customizable)

Use environment:

Outdoor/Indoor/Table Well

Pressure rating:

1.6 MPA

Maximum pressure loss:

△P63

Protection level:

IP 68

Temperature rating:

T30/T50

Accuracy level:

Class B

Range ratio:

R250 (R400 (metal pipe section) can be customized)

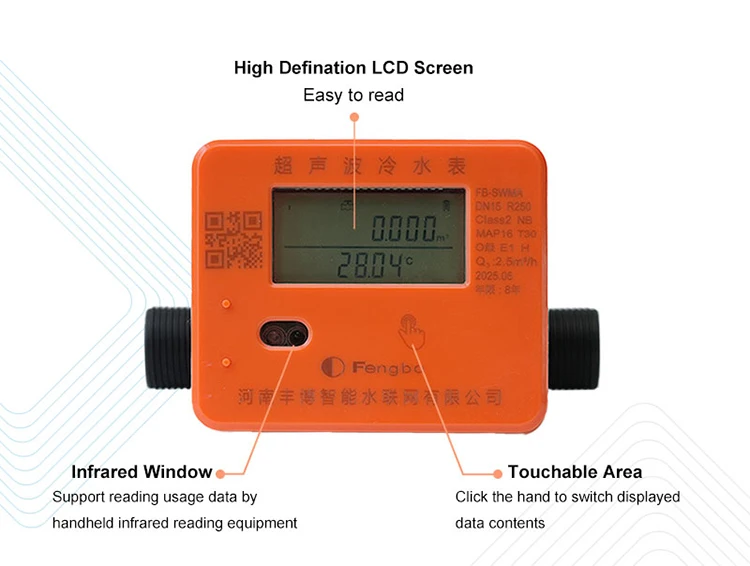

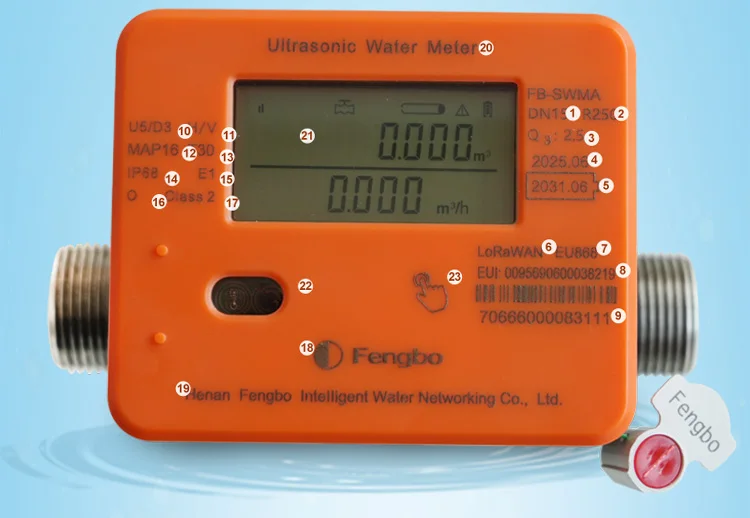

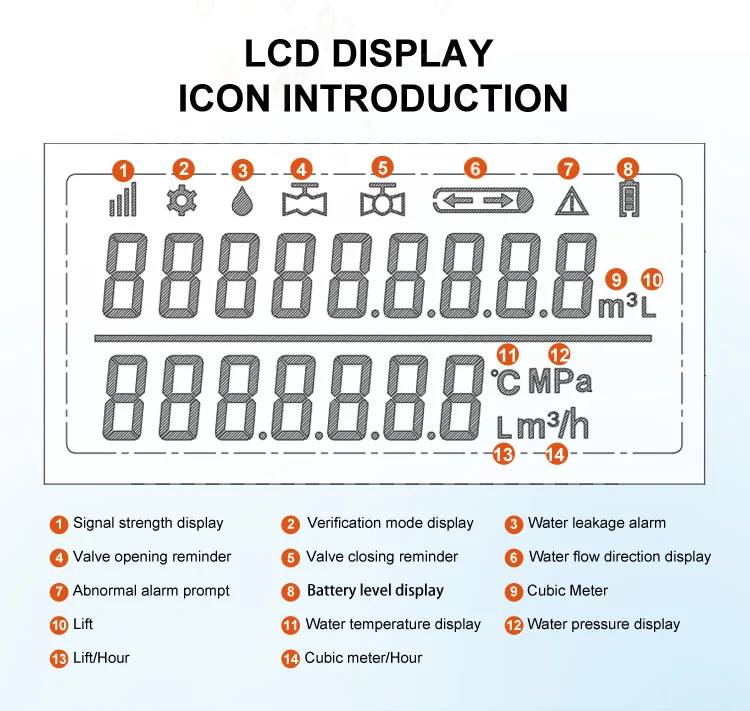

LCD screen display digits:

9-bit

LCD screen display accuracy:

The default measurement unit is m³, and the display precision is 3 decimal places.

Data storage period:

24 months of historical data

Alarm function:

Underpressure alarm, reverse flow alarm, valve failure alarm (only for valve type), empty pipe alarm, temperature alarm, overload
alarm

Supporting system:

Default is Fengbo, customizable (protocol docking, API development)
